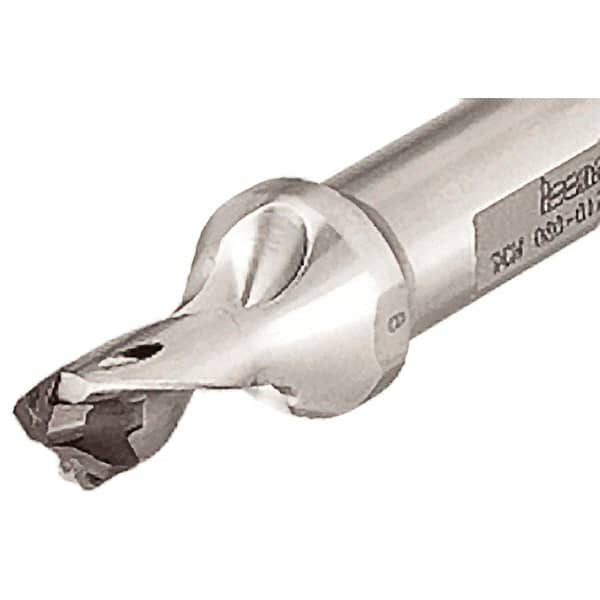

Iscar - 0.335 to 0.35" Diam, 1.5xD, 1/2" Max Drill Depth, 2.87" OAL, Replaceable Tip Drill - 2.87" OAL, 1.5xD Drill Depth by Diam Ratio
Item #: 50066695
Brand: Iscar
Model #: 3203333
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (Decimal Inch) | 0.3350 |
| Maximum Drill Diameter (Decimal Inch) | 0.3500 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.5000 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 1.1000 |
| Overall Length (Decimal Inch) | 2.8700 |
| Shank Length (Decimal Inch) | 1.7700 |
