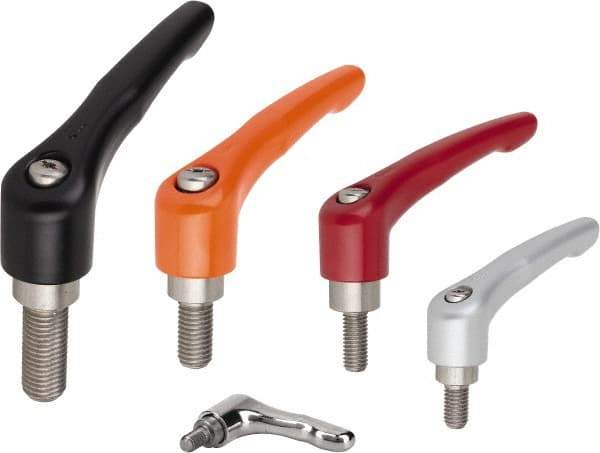

KIPP - 1/4-20, Zinc Threaded Stud Adjustable Clamping Handle - 47mm OAL, 34mm High
Item #: 50056548
Brand: KIPP
Model #: K0123.1A23X50
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 1/4-20 |
| Overall Length (mm) | 47.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Powder Coated |
| Components Material | Stainless Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 1.5748 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 0.9646 |
| Body Diameter (mm) | 14.00 |
| Base Height (Decimal Inch) | 0.1575 |
| Base Diameter (Decimal Inch) | 0.3937 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 24.50 |
| Body Diameter (Decimal Inch) | 0.5512 |
| Base Height (mm) | 4.00 |
| Base Diameter (mm) | 10.00 |
| Thread Length (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 34.00 |
| Overall Height (Decimal Inch) | 1.3386 |
| Thread Length (mm) | 50.00 |
| Handle Radius Length (mm) | 40.00 |
| Handle Color | Silver |
