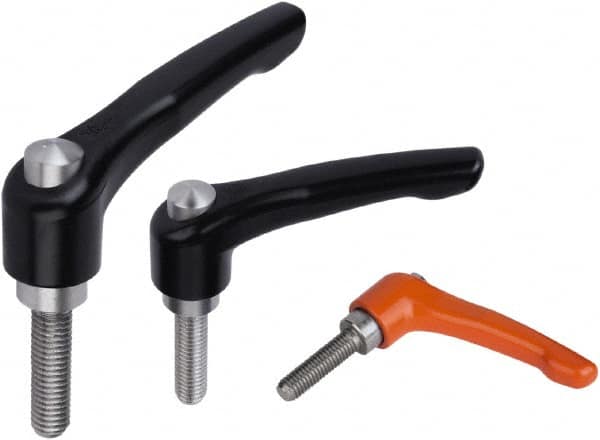

KIPP - M8, Zinc Threaded Stud Adjustable Clamping Handle - 74.5mm OAL, 45.5mm High
Item #: 50055367
Brand: KIPP
Model #: K0123.92081X15
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M8 |
| Overall Length (mm) | 74.50 |
| Handle Material | Zinc |
| Components Finish/Coating | Natural; Natural (Cap) |
| Handle Finish/Coating | Powder Coated; Satin |
| Components Material | Stainless Steel; Stainless Steel (Cap) |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 2.5591 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 1.2598 |
| Body Diameter (mm) | 19.00 |
| Base Height (Decimal Inch) | 0.2559 |
| Base Diameter (Decimal Inch) | 0.5315 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 32.00 |
| Body Diameter (Decimal Inch) | 0.7480 |
| Base Height (mm) | 6.50 |
| Base Diameter (mm) | 13.50 |
| Thread Length (Decimal Inch) | 0.5906 |
| Overall Height (mm) | 45.50 |
| Overall Height (Decimal Inch) | 1.7913 |
| Thread Length (mm) | 15.00 |
| Handle Radius Length (mm) | 65.00 |
| Handle Color | Black |
