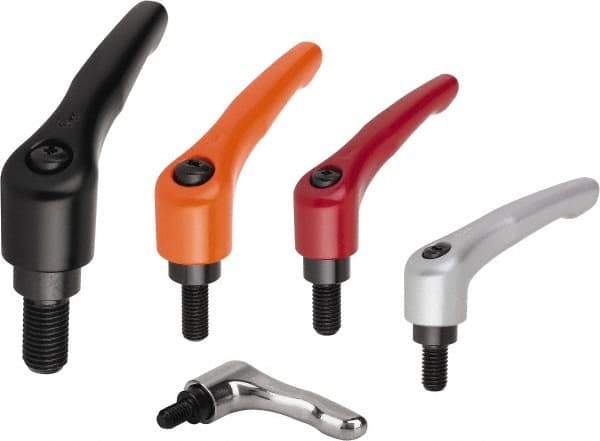

KIPP - M16, Zinc Threaded Stud Adjustable Clamping Handle - 126mm OAL, 77.5mm High
Item #: 50048172
Brand: KIPP
Model #: K0122.5162X25
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M16 |
| Overall Length (mm) | 126.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Powder Coated |
| Components Material | Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 4.3307 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 1.9291 |
| Body Diameter (mm) | 32.00 |
| Base Height (Decimal Inch) | 0.4724 |
| Base Diameter (Decimal Inch) | 0.9055 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 49.00 |
| Body Diameter (Decimal Inch) | 1.2598 |
| Base Height (mm) | 12.00 |
| Base Diameter (mm) | 23.00 |
| Thread Length (Decimal Inch) | 0.9843 |
| Overall Height (mm) | 77.50 |
| Overall Height (Decimal Inch) | 3.0512 |
| Thread Length (mm) | 25.00 |
| Handle Radius Length (mm) | 110.00 |
| Handle Color | Orange |
