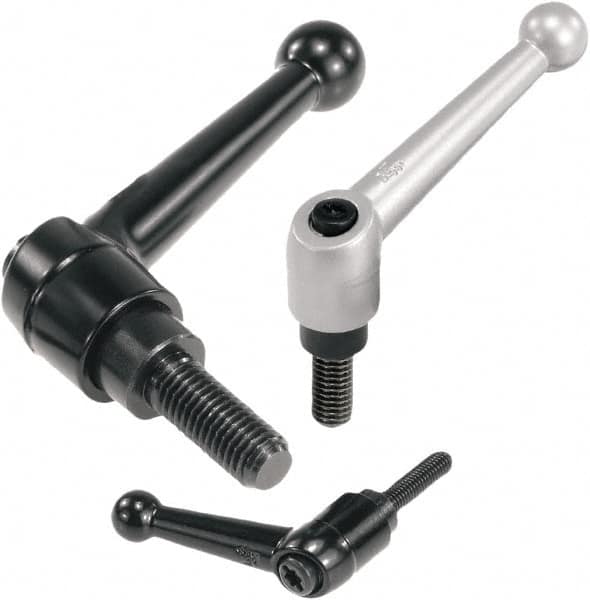

KIPP - M6, Zinc Threaded Stud Adjustable Clamping Handle - 46mm OAL, 35.5mm High
Item #: 50043280
Brand: KIPP
Model #: K0116.1063X15
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M6 |
| Overall Length (mm) | 46.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Powder Coated |
| Components Material | Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 1.5354 |
| Handle Arm Style | Ball End |
| Body Height (Decimal Inch) | 0.9646 |
| Body Diameter (mm) | 14.00 |
| Base Height (Decimal Inch) | 0.1575 |
| Base Diameter (Decimal Inch) | 0.3937 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 24.50 |
| Body Diameter (Decimal Inch) | 0.5512 |
| Base Height (mm) | 4.00 |
| Base Diameter (mm) | 10.00 |
| Thread Length (Decimal Inch) | 0.5906 |
| Overall Height (mm) | 35.50 |
| Overall Height (Decimal Inch) | 1.3976 |
| Thread Length (mm) | 15.00 |
| Handle Radius Length (mm) | 39.00 |
| Handle Color | Silver |
