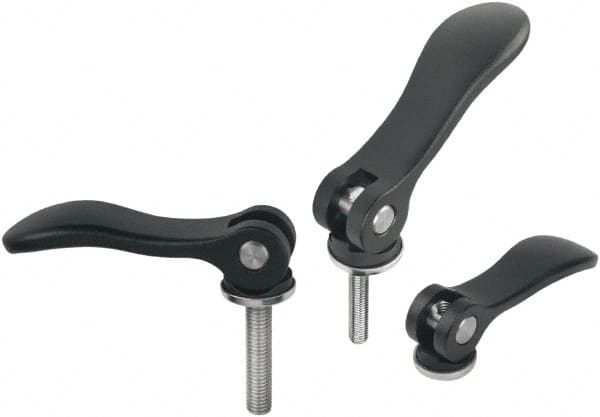

KIPP - M6, Aluminum Threaded Stud Adjustable Clamping Handle - 79.2mm OAL, 22mm High
Item #: 50042159
Brand: KIPP
Model #: K0005.151110630
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M6 |
| Overall Length (mm) | 79.20 |
| Handle Material | Aluminum |
| Components Finish/Coating | Black Oxide (Washer); Natural (Hinge Pin/Threaded Stud/Washer) |
| Handle Finish/Coating | Powder Coated |
| Components Material | Fiberglass-Reinforced Plastic (Washer); Stainless Steel |
| Handle Type | Adjustable Cam Lever |
| Handle Radius Length (Decimal Inch) | 2.7717 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 0.8661 |
| Base Diameter (Decimal Inch) | 0.7087 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 22.00 |
| Base Diameter (mm) | 18.00 |
| Thread Length (Decimal Inch) | 1.1811 |
| Overall Height (mm) | 22.00 |
| Overall Height (Decimal Inch) | 0.8661 |
| Thread Length (mm) | 30.00 |
| Handle Radius Length (mm) | 70.40 |
| Handle Color | Black |
