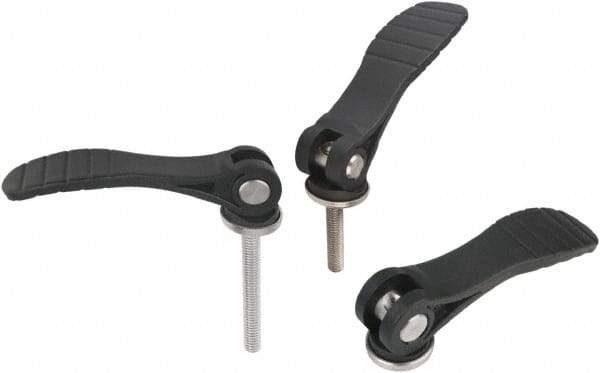

KIPP - M8, Fiberglass Reinforced Plastic Threaded Stud Adjustable Clamping Handle - 110mm OAL, 27.7mm High
Item #: 50041193
Brand: KIPP
Model #: K0646.253110850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M8 |
| Overall Length (mm) | 110.00 |
| Handle Material | Fiberglass-Reinforced Plastic |
| Components Finish/Coating | Black Oxide (Washer); Natural (Hinge Pin/Threaded Stud/Washer) |
| Components Material | Fiberglass-Reinforced Plastic (Washer); Stainless Steel |
| Handle Type | Adjustable Cam Lever |
| Handle Radius Length (Decimal Inch) | 3.9331 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 1.0906 |
| Base Diameter (Decimal Inch) | 1.0630 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 27.70 |
| Base Diameter (mm) | 27.00 |
| Thread Length (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 27.70 |
| Overall Height (Decimal Inch) | 1.0906 |
| Thread Length (mm) | 50.00 |
| Handle Radius Length (mm) | 99.90 |
| Handle Color | Black |
