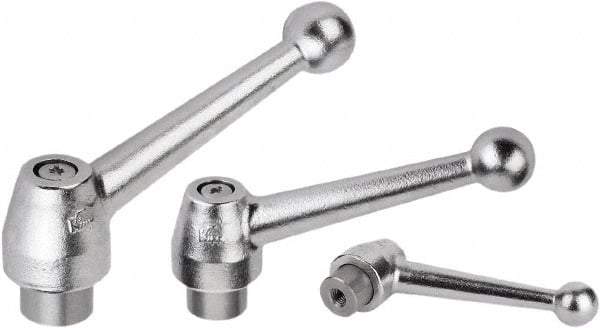

KIPP - M20, Steel Threaded Hole Adjustable Clamping Handle - 153.5mm OAL, 78mm High
Item #: 50040252
Brand: KIPP
Model #: K0120.320
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Hole |
| Thread Size | M20 |
| Overall Length (mm) | 153.50 |
| Handle Material | Steel |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Hammertone |
| Components Material | Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 5.1969 |
| Handle Arm Style | Ball End |
| Body Height (Decimal Inch) | 2.3032 |
| Body Diameter (mm) | 43.00 |
| Base Height (Decimal Inch) | 0.4724 |
| Base Diameter (Decimal Inch) | 1.1811 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 58.50 |
| Body Diameter (Decimal Inch) | 1.6929 |
| Base Height (mm) | 12.00 |
| Base Diameter (mm) | 30.00 |
| Thread Length (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 78.00 |
| Overall Height (Decimal Inch) | 3.0709 |
| Thread Length (mm) | 27.00 |
| Handle Radius Length (mm) | 132.00 |
| Handle Color | Silver |
