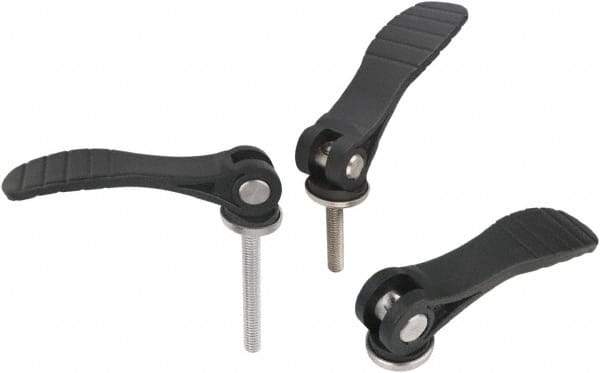

KIPP - M6, Fiberglass Reinforced Plastic Threaded Stud Adjustable Clamping Handle - 79.6mm OAL, 23.4mm High
Item #: 50034404
Brand: KIPP
Model #: K0646.152110620
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M6 |
| Overall Length (mm) | 79.60 |
| Handle Material | Fiberglass-Reinforced Plastic |
| Components Finish/Coating | Black Oxide (Washer); Blue Chromated (Threaded Stud/Washer); Natural (Hinge Pin) |
| Components Material | Fiberglass-Reinforced Plastic (Washer); Stainless Steel (Hinge Pin); Steel (Threaded Stud/Washer) |
| Handle Type | Adjustable Cam Lever |
| Handle Radius Length (Decimal Inch) | 2.8150 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 0.9213 |
| Base Diameter (Decimal Inch) | 0.7087 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 23.40 |
| Base Diameter (mm) | 18.00 |
| Thread Length (Decimal Inch) | 0.7874 |
| Overall Height (mm) | 23.40 |
| Overall Height (Decimal Inch) | 0.9213 |
| Thread Length (mm) | 20.00 |
| Handle Radius Length (mm) | 71.50 |
| Handle Color | Black |
