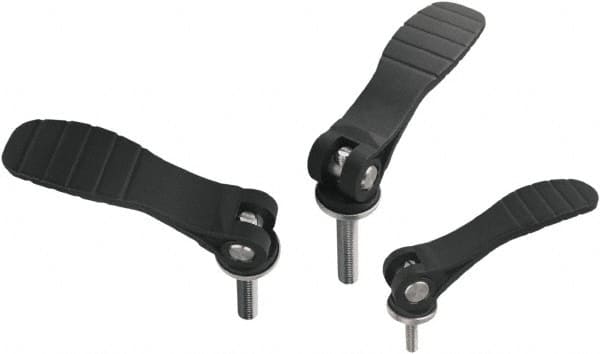

KIPP - 1/4-20, Fiberglass Reinforced Plastic Threaded Stud Adjustable Clamping Handle - 79.6mm OAL, 23.1mm High
Item #: 50034149
Brand: KIPP
Model #: K0648.15311A230
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 1/4-20 |
| Overall Length (mm) | 79.60 |
| Handle Material | Fiberglass-Reinforced Plastic |
| Components Finish/Coating | Black Oxide (Washer); Natural (Hinge Pin/Threaded Stud/Washer) |
| Components Material | Fiberglass-Reinforced Plastic (Washer); Stainless Steel |
| Handle Type | Adjustable Cam Lever |
| Handle Radius Length (Decimal Inch) | 2.8150 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 0.9094 |
| Base Diameter (Decimal Inch) | 0.7087 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 23.10 |
| Base Diameter (mm) | 18.00 |
| Thread Length (Decimal Inch) | 1.1811 |
| Overall Height (mm) | 23.10 |
| Overall Height (Decimal Inch) | 0.9094 |
| Thread Length (mm) | 30.00 |
| Handle Radius Length (mm) | 71.50 |
| Handle Color | Black |
