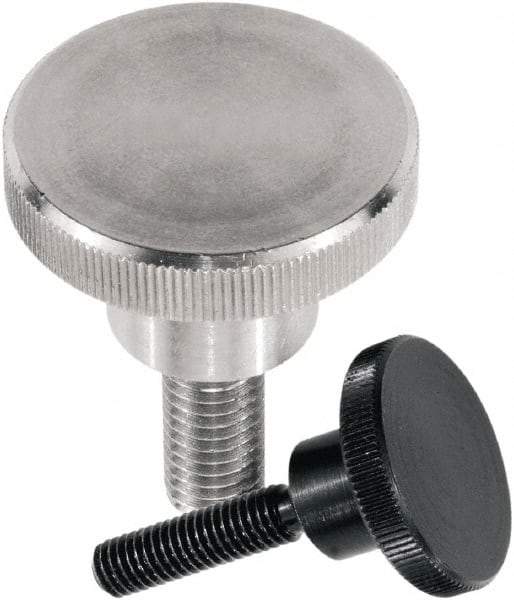

KIPP - M6 Knurled Shoulder Flat Tip Grade 1.0718 Steel Thumb Screw - 40mm OAL, 24mm Head Diam x 5mm Head Height, Black Oxide Finish
Item #: 50033117
Brand: KIPP
Model #: K0140.06X25
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Thread Size | M6 |
| Head Type | Knurled |
| Shoulder Type | Shoulder |
| Tip Type | Flat |
| Material | Steel |
| Material Grade | 1.0718 |
| Overall Length (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 40.00 |
| Finish/Coating | Black Oxide |
| Head Diameter (Decimal Inch) | 0.9449 |
| Head Diameter (mm) | 24.00 |
| Head Height (Decimal Inch) | 0.1969 |
| Head Height (mm) | 5.00 |
| Thread Standard | Metric |
| Fastener Standard | DIN 464 |
| Head Color | Black Oxide |
| Head Material | Steel |
| Shoulder Diameter (Decimal Inch) | 0.4724 |
| Shoulder Diameter (mm) | 12.00 |
| Tip Length (mm) | 5.00 |
| Tip Diameter (mm) | 24.00 |
| Tip Material | Steel |
