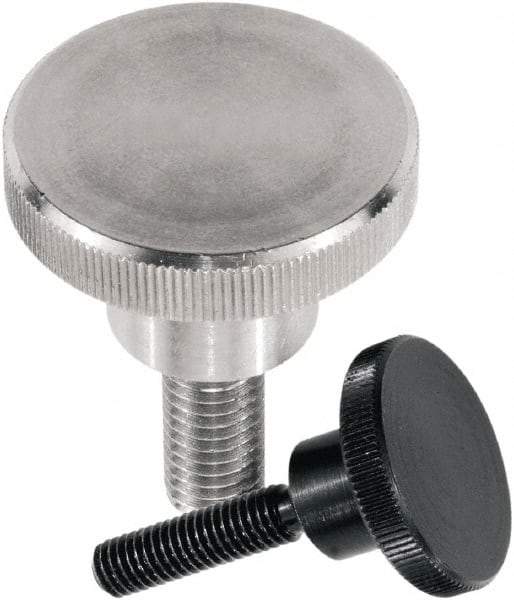

KIPP - M10 Knurled Shoulder Flat Tip Grade 1.4305 Stainless Steel Thumb Screw - 43mm OAL, 36mm Head Diam x 8mm Head Height, Uncoated
Item #: 50033042
Brand: KIPP
Model #: K0140.102X20
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Thread Size | M10 |
| Head Type | Knurled |
| Shoulder Type | Shoulder |
| Tip Type | Flat |
| Material | Stainless Steel |
| Material Grade | 1.4305 |
| Overall Length (Decimal Inch) | 1.6929 |
| Overall Length (mm) | 43.00 |
| Finish/Coating | Uncoated |
| Head Diameter (Decimal Inch) | 1.4173 |
| Head Diameter (mm) | 36.00 |
| Head Height (Decimal Inch) | 0.3150 |
| Head Height (mm) | 8.00 |
| Thread Standard | Metric |
| Fastener Standard | DIN 464 |
| Head Color | Natural |
| Head Material | Stainless Steel |
| Shoulder Diameter (Decimal Inch) | 0.7874 |
| Shoulder Diameter (mm) | 20.00 |
| Tip Length (mm) | 8.00 |
| Tip Diameter (mm) | 36.00 |
| Tip Material | Stainless Steel |
