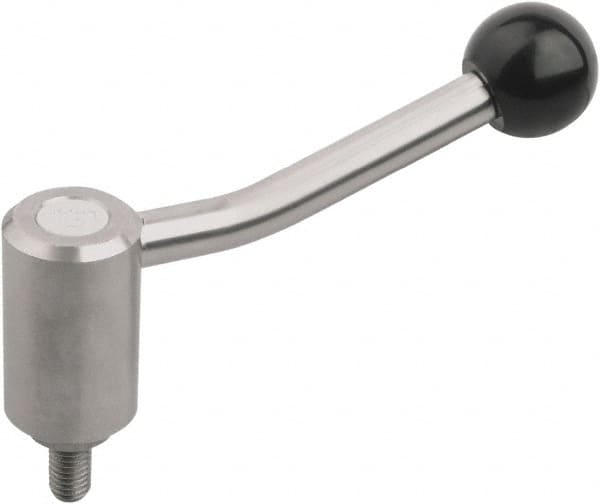

KIPP - 1/2-13, Stainless Steel Threaded Stud Adjustable Clamping Handle - 100mm OAL, 58.5mm High
Item #: 50029784
Brand: KIPP
Model #: K0109.1A51X30
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 1/2-13 |
| Overall Length (mm) | 100.00 |
| Handle Material | Stainless Steel |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Natural |
| Components Material | Stainless Steel |
| Handle Type | Adjustable Tension Lever |
| Handle Radius Length (Decimal Inch) | 3.4646 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 1.7520 |
| Body Diameter (mm) | 24.00 |
| Base Height (Decimal Inch) | 0.1772 |
| Base Diameter (Decimal Inch) | 0.6299 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 44.50 |
| Body Diameter (Decimal Inch) | 0.9449 |
| Base Height (mm) | 4.50 |
| Base Diameter (mm) | 16.00 |
| Thread Length (Decimal Inch) | 1.1811 |
| Overall Height (mm) | 58.50 |
| Overall Height (Decimal Inch) | 2.3032 |
| Thread Length (mm) | 30.00 |
| Handle Radius Length (mm) | 88.00 |
| Handle Color | Metallic |
