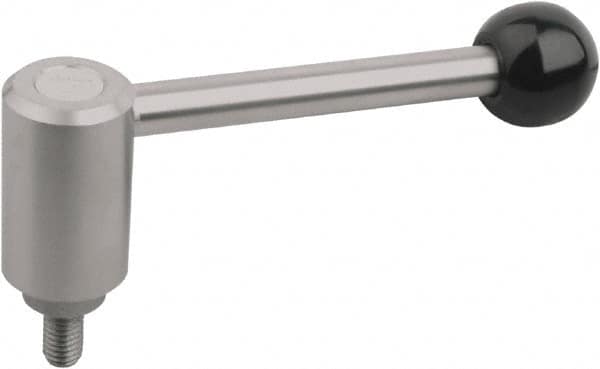

KIPP - 1/2-13, Stainless Steel Threaded Stud Adjustable Clamping Handle - 104mm OAL, 49.5mm High
Item #: 50029685
Brand: KIPP
Model #: K0109.1A52X60
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 1/2-13 |
| Overall Length (mm) | 104.00 |
| Handle Material | Stainless Steel |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Natural |
| Components Material | Stainless Steel |
| Handle Type | Adjustable Tension Lever |
| Handle Radius Length (Decimal Inch) | 3.6221 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 1.7520 |
| Body Diameter (mm) | 24.00 |
| Base Height (Decimal Inch) | 0.1772 |
| Base Diameter (Decimal Inch) | 0.6299 |
| Handle Arm Angle | Straight (0 ) |
| Body Height (mm) | 44.50 |
| Body Diameter (Decimal Inch) | 0.9449 |
| Base Height (mm) | 4.50 |
| Base Diameter (mm) | 16.00 |
| Thread Length (Decimal Inch) | 2.3622 |
| Overall Height (mm) | 49.50 |
| Overall Height (Decimal Inch) | 1.9488 |
| Thread Length (mm) | 60.00 |
| Handle Radius Length (mm) | 92.00 |
| Handle Color | Metallic |
