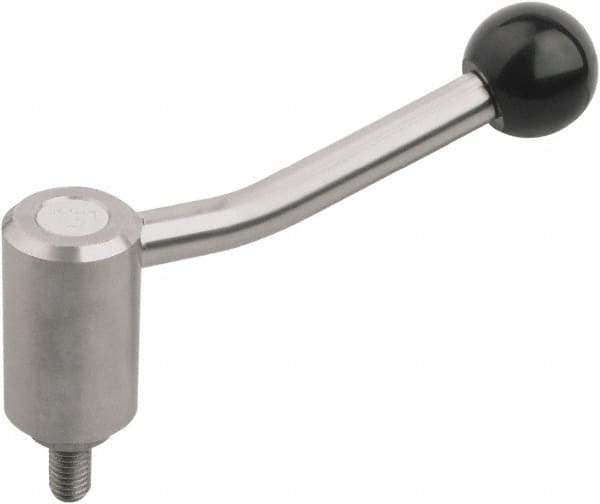

KIPP - M12, Stainless Steel Threaded Stud Adjustable Clamping Handle - 120mm OAL, 68.5mm High
Item #: 50029677
Brand: KIPP
Model #: K0109.2121X20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M12 |
| Overall Length (mm) | 120.00 |
| Handle Material | Stainless Steel |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Natural |
| Components Material | Stainless Steel |
| Handle Type | Adjustable Tension Lever |
| Handle Radius Length (Decimal Inch) | 4.1732 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 2.0276 |
| Body Diameter (mm) | 28.00 |
| Base Height (Decimal Inch) | 0.2165 |
| Base Diameter (Decimal Inch) | 0.7480 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 51.50 |
| Body Diameter (Decimal Inch) | 1.1024 |
| Base Height (mm) | 5.50 |
| Base Diameter (mm) | 19.00 |
| Thread Length (Decimal Inch) | 0.7874 |
| Overall Height (mm) | 68.50 |
| Overall Height (Decimal Inch) | 2.6969 |
| Thread Length (mm) | 20.00 |
| Handle Radius Length (mm) | 106.00 |
| Handle Color | Metallic |
