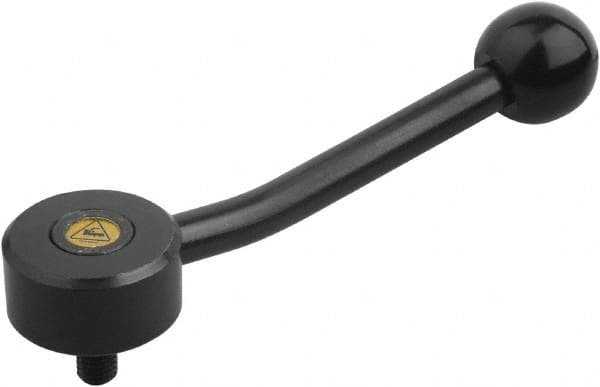

KIPP - M16, Steel Threaded Stud Adjustable Clamping Handle - 167.5mm OAL, 48mm High
Item #: 50028653
Brand: KIPP
Model #: K0114.3162X40
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M16 |
| Overall Length (mm) | 167.50 |
| Handle Material | Steel |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Black Oxide |
| Components Material | Steel |
| Handle Type | Adjustable Tension Lever Low-Profile |
| Handle Radius Length (Decimal Inch) | 5.7087 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 1.1024 |
| Body Diameter (mm) | 45.00 |
| Base Height (Decimal Inch) | 0.0787 |
| Base Diameter (Decimal Inch) | 0.9055 |
| Handle Arm Angle | 15 Angle |
| Body Height (mm) | 28.00 |
| Body Diameter (Decimal Inch) | 1.7717 |
| Base Height (mm) | 2.00 |
| Base Diameter (mm) | 23.00 |
| Thread Length (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 48.00 |
| Overall Height (Decimal Inch) | 1.8898 |
| Thread Length (mm) | 40.00 |
| Handle Radius Length (mm) | 145.00 |
| Handle Color | Black |
