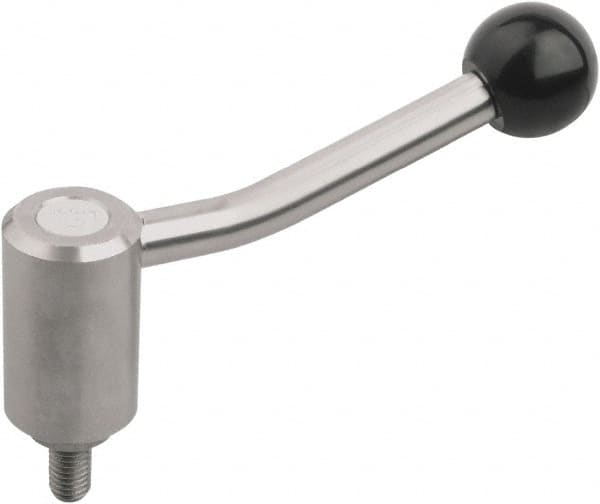

KIPP - 1/2-13, Stainless Steel Threaded Stud Adjustable Clamping Handle - 145mm OAL, 81mm High
Item #: 50028422
Brand: KIPP
Model #: K0109.3A51X50
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 1/2-13 |
| Overall Length (mm) | 145.00 |
| Handle Material | Stainless Steel |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Natural |
| Components Material | Stainless Steel |
| Handle Type | Adjustable Tension Lever |
| Handle Radius Length (Decimal Inch) | 5.0591 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 2.2835 |
| Body Diameter (mm) | 33.00 |
| Base Height (Decimal Inch) | 0.2362 |
| Base Diameter (Decimal Inch) | 0.9055 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 58.00 |
| Body Diameter (Decimal Inch) | 1.2992 |
| Base Height (mm) | 6.00 |
| Base Diameter (mm) | 23.00 |
| Thread Length (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 81.00 |
| Overall Height (Decimal Inch) | 3.1890 |
| Thread Length (mm) | 50.00 |
| Handle Radius Length (mm) | 128.50 |
| Handle Color | Metallic |
