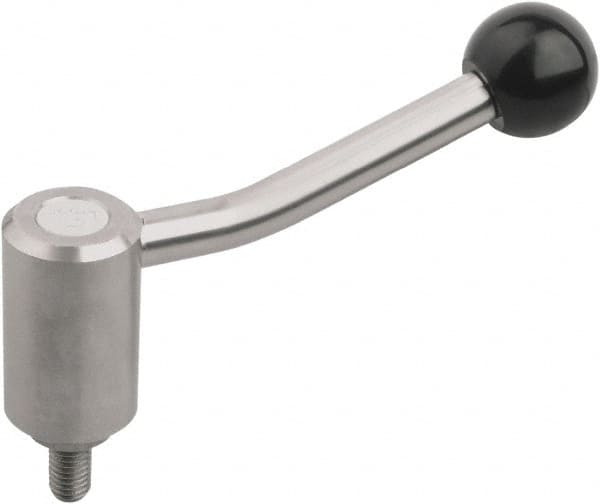

KIPP - M16, Stainless Steel Threaded Stud Adjustable Clamping Handle - 149mm OAL, 89.5mm High
Item #: 50028109
Brand: KIPP
Model #: K0109.4161X30
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M16 |
| Overall Length (mm) | 149.00 |
| Handle Material | Stainless Steel |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Natural |
| Components Material | Stainless Steel |
| Handle Type | Adjustable Tension Lever |
| Handle Radius Length (Decimal Inch) | 5.0591 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 2.6969 |
| Body Diameter (mm) | 41.00 |
| Base Height (Decimal Inch) | 0.2953 |
| Base Diameter (Decimal Inch) | 1.1811 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 68.50 |
| Body Diameter (Decimal Inch) | 1.6142 |
| Base Height (mm) | 7.50 |
| Base Diameter (mm) | 30.00 |
| Thread Length (Decimal Inch) | 1.1811 |
| Overall Height (mm) | 89.50 |
| Overall Height (Decimal Inch) | 3.5236 |
| Thread Length (mm) | 30.00 |
| Handle Radius Length (mm) | 128.50 |
| Handle Color | Metallic |
