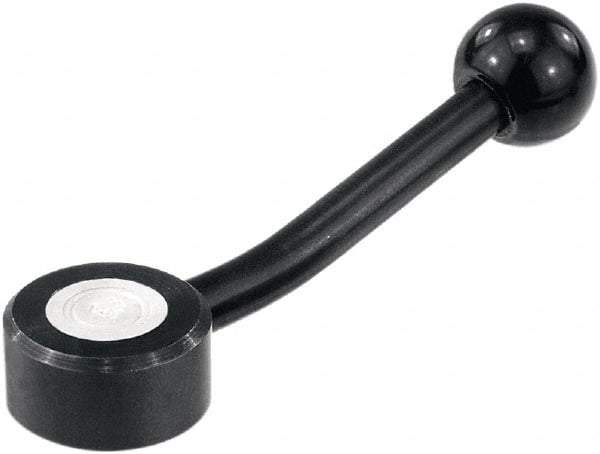

KIPP - M8, Steel Threaded Hole Adjustable Clamping Handle - 116.5mm OAL, 29mm High
Item #: 50027531
Brand: KIPP
Model #: K0114.1082
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Hole |
| Thread Size | M8 |
| Overall Length (mm) | 116.50 |
| Handle Material | Steel |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Black Oxide |
| Components Material | Steel |
| Handle Type | Adjustable Tension Lever Low-Profile |
| Handle Radius Length (Decimal Inch) | 3.9370 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 0.7480 |
| Body Diameter (mm) | 33.00 |
| Base Height (Decimal Inch) | 0.0787 |
| Base Diameter (Decimal Inch) | 0.5315 |
| Handle Arm Angle | 15 Angle |
| Body Height (mm) | 19.00 |
| Body Diameter (Decimal Inch) | 1.2992 |
| Base Height (mm) | 2.00 |
| Base Diameter (mm) | 13.50 |
| Thread Length (Decimal Inch) | 0.7087 |
| Overall Height (mm) | 29.00 |
| Overall Height (Decimal Inch) | 1.1417 |
| Thread Length (mm) | 18.00 |
| Handle Radius Length (mm) | 100.00 |
| Handle Color | Black |
