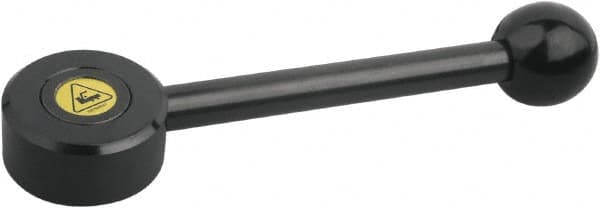

KIPP - 1/4-20, Steel Threaded Hole Adjustable Clamping Handle - 118.5mm OAL, 23mm High
Item #: 50027523
Brand: KIPP
Model #: K0114.1A21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Hole |
| Thread Size | 1/4-20 |
| Overall Length (mm) | 118.50 |
| Handle Material | Steel |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Black Oxide |
| Components Material | Steel |
| Handle Type | Adjustable Tension Lever Low-Profile |
| Handle Radius Length (Decimal Inch) | 4.0158 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 0.7480 |
| Body Diameter (mm) | 33.00 |
| Base Height (Decimal Inch) | 0.0787 |
| Base Diameter (Decimal Inch) | 0.5315 |
| Handle Arm Angle | Straight (0 ) |
| Body Height (mm) | 19.00 |
| Body Diameter (Decimal Inch) | 1.2992 |
| Base Height (mm) | 2.00 |
| Base Diameter (mm) | 13.50 |
| Thread Length (Decimal Inch) | 0.7087 |
| Overall Height (mm) | 23.00 |
| Overall Height (Decimal Inch) | 0.9055 |
| Thread Length (mm) | 18.00 |
| Handle Radius Length (mm) | 102.00 |
| Handle Color | Black |
