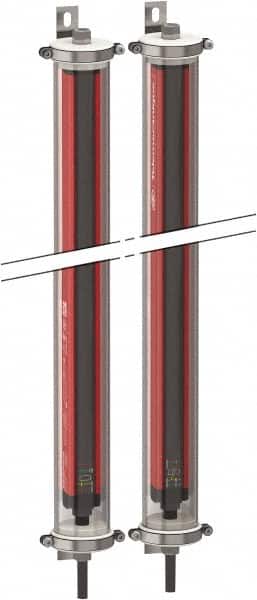

Telemecanique Sensors - 38 Beam, 29.92 Inch Height Protection, 8, 17m Max Sensing, -13 to 131°F, Hand Protection 4, Safety Light Curtain - 24 VDC, Red
Item #: 49949027
Brand: Telemecanique Sensors
Model #: XUSL4E30H076LWH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Protection Type | Hand Protection Type 4 |
| Height Protected (Decimal Inch) | 29.9200 |
| Height Protected (mm) | 760 |
| Maximum Nominal Sensing Distance (Meters) | 8.00; 17.00 |
| Number of Beams | 38 |
| Response Time (ms) | 10-1/2 |
| Voltage | 24 VDC |
| Resolution (mm) | 30 |
| Resolution (Decimal Inch) | 1.1800 |
| Housing Color | Red |
| Ingress Protection Rating | IP69K |
| Maximum Operating Temperature (F) | 131 |
| Minimum Operating Temperature (F) | -13 |
| Includes | Adjustable Mounting Bracket; PVC Cable; Receiver; Silicone O-ring; Transmitter; User Guide with Certificate of Conformity on CD-ROM |
| Standards Met | 2002/95/EC - RoHS directive; 2002/96/EC - WEEE directive; 89/336/EEC; 89/655/EEC; 98/37/EEC; CE; cULus; TUV |
