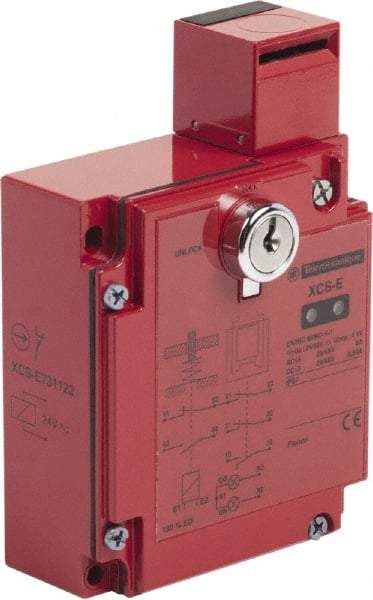

Telemecanique Sensors - 2NO/2NC Configuration, 300 VAC, 5 Amp, Metal Key Safety Limit Switch - 3.86 Inch Wide x 1.73 Inch Deep x 5-3/4 Inch High, IP67 Ingress Rating
Item #: 49803125
Brand: Telemecanique Sensors
Model #: XCSE731122
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Key |
| Amperage | 5 |
| Voltage | 300 VAC |
| Contact Configuration | 2NO/2NC |
| Terminal Type | Screw |
| Material | Metal |
| Switch Type | Key Operated General Safety Switch |
| Ingress Protection Rating | IP67 |
| Overall Width (Decimal Inch) | 3.8600 |
| Overall Width (mm) | 98 |
| Overall Height (mm) | 146.00 |
| Overall Height (Decimal Inch) | 5-3/4 |
| Overall Depth (Decimal Inch) | 1.7300 |
| Overall Depth (mm) | 44.00 |
| Standards Met | CSA C22.2 No. 14; CSA Certified; EN 1088/ISO 14119; EN/IEC 60204-1; EN/IEC 60947-5-1; EN/ISO 12100; IEC 60068-2-27; IEC 60068-2-6; UL 508; UL Listed |
