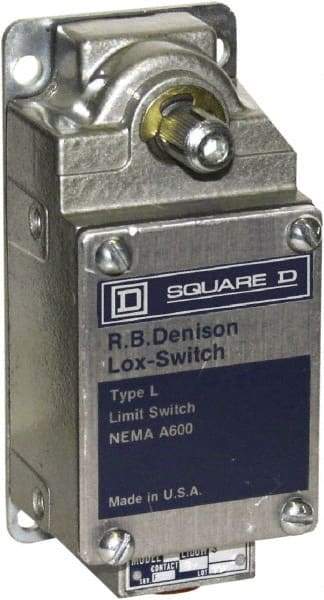

Square D - DPST, 2NC, 600 Volt, Screw Terminal, Rotary Spring Return Actuator, General Purpose Limit Switch - 1, 2, 4, 12, 13 NEMA Rating, IP67 IPR Rating
Item #: 49797392
Brand: Square D
Model #: L100WDR2M5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rotary Spring Return |
| Voltage | 600 V |
| Contact Form | DPST |
| Contact Configuration | 2NC |
| Terminal Type | Screw Terminal |
| Connection Type | 1/2 NPT |
| Actuator Location | Side |
| Material | Aluminum |
| Amperage | 10 |
| Actuator Length (Decimal Inch) | 5.1000 |
| NEMA Rating | 1; 2; 4; 12; 13 |
| Ingress Protection Rating | IP67 |
| Travel (Degrees) | 17 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -10 |
| Overall Width (Decimal Inch) | 2-1/4 |
| Overall Depth (Decimal Inch) | 3.4100 |
| Standards Met | IEC 60068-2-27; IEC 60068-2-6; IEC 60529; IEC 61140; RoHS Compliant |
