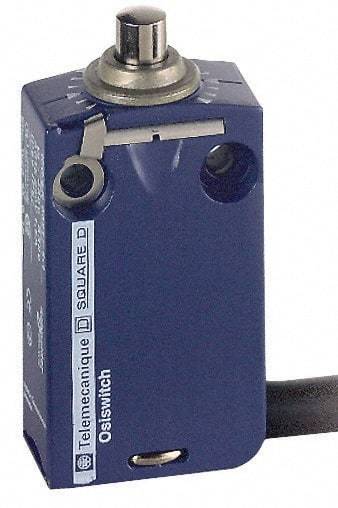

Telemecanique Sensors - 3P, 2NC/NO, Removable Cable Terminal, End Plunger Actuator, General Purpose Limit Switch - IP66, IP67, IP68 IPR Rating
Item #: 49795263
Brand: Telemecanique Sensors
Model #: XCMD3910L2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | End Plunger |
| Contact Form | 3P |
| Contact Configuration | 2NC/NO |
| Terminal Type | Removable Cable |
| Actuator Location | Top |
| Material | Zamak |
| Amperage | 6 |
| Actuator Length (Decimal Inch) | 5 |
| Ingress Protection Rating | IP66; IP67; IP68 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Overall Width (mm) | 30 |
| Overall Depth (mm) | 16 |
| Standards Met | CCC; CSA; CSA C22.2 No. 14; EN/IEC 60204-1; EN/IEC 60947-5-1; RoHS Compliant; UL; UL 508 |
