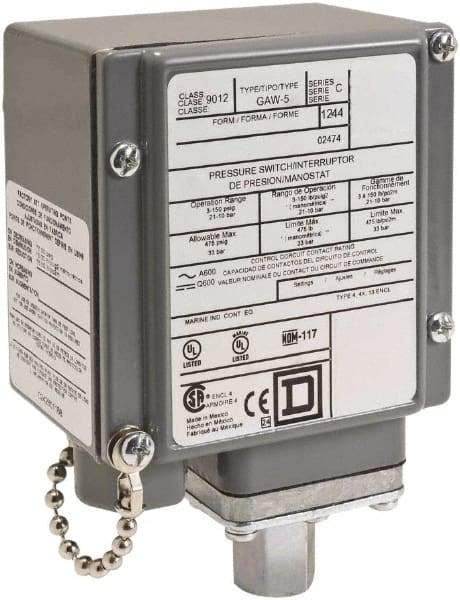

Square D - 4, 13 and 4X NEMA Rated, SPDT, 20 to 675 psi, Electromechanical Pressure and Level Switch - Adjustable Pressure, 120 VAC at 6 Amp, 240 VAC at 3 Amp, 250 VDC at 0.27 Amp, 1/4 Inch Connector, Screw Terminal, For Use with 9012G
Item #: 49748452
Brand: Square D
Model #: 9012GBW2Q4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Switch Type | Electromechanical |
| NEMA Rating | 4; 13; 4X |
| Maximum Pressure Setting | 675 psi |
| Minimum Pressure Setting | 20 psi |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (psi) | 130.00 |
| Minimum Differential Pressure (psi) | 27.00 |
| Voltage | 120 VAC @ 6 A; 240 VAC @ 3 A; 250 VDC @ 0.27 A |
| Contact Form | SPDT |
| Connector Size (Decimal Inch) | 0.2500 |
| Terminal Type | Screw |
| Resistance Features | Shock Resistant; Vibration Resistant |
| For Use With | 9012G |
| Standards Met | CE; CSA C22.2 No. 14; CSA LR25490 Class 3211 03; IEC 58; IEC 68-2-6; RoHS Compliant; UL 50; UL 508; UL Listed File E12158 CCN NKPZ & CCN NTHT |
| Amperage | 0.27 @ 250 VDC; 3 @ 240 VAC; 6 @ 120 VAC |
