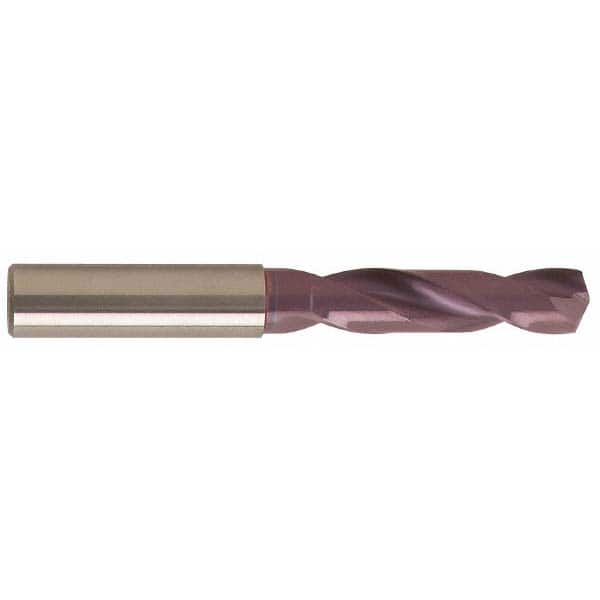

Screw Machine Length Drill Bit: 0.5984″ Dia, 140 °, Solid Carbide FIREX Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5510
Item #: 49742216
Brand: Guhring
Model #: 9055100152000
Product Specifications
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | FIREX |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | SU |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Drill Bit Size (Decimal Inch) | 0.5984 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Shank Diameter (mm) | 16.00 |
| Series | 5510 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Flute Length (mm) | 65.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| Material Grade | Submicron |
