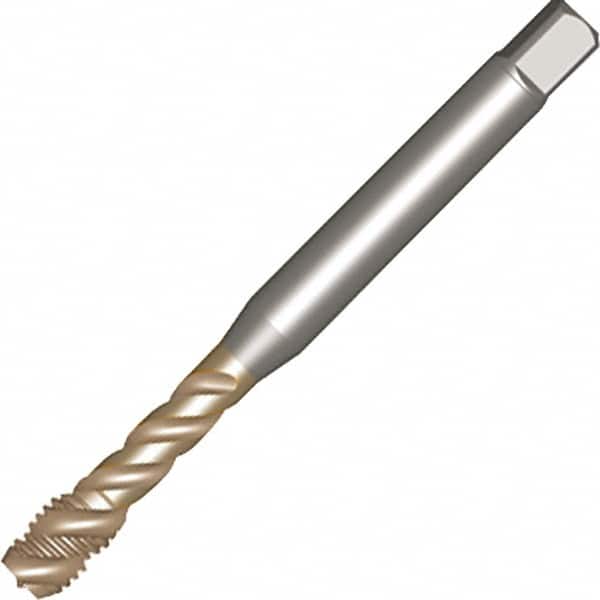

Sandvik Coromant - M4x0.70 M 3 Flute 6H Spiral Flute Tap - High Speed Steel, Fe Finish, 63mm OAL, Right Hand Thread, Series CoroTap 300
Item #: 49689151
Brand: Sandvik Coromant
Model #: 6967009
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M4x0.70 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Fe |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 63.00 |
| Helix Angle | 45 |
| Thread Standard | M |
| Thread Length (Decimal Inch) | 0.3307 |
| Thread Length (mm) | 8.40 |
| Series/List | CoroTap 300 |
| Tapping Depth (Decimal Inch) | 0.8465 |
| Tapping Depth (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Shank Diameter (mm) | 4.93 |
| Material Application | Steel; Stainless Steel; Cast Iron |
