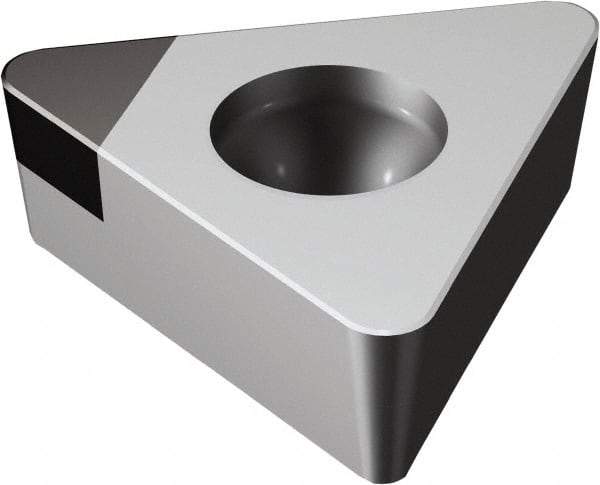

Sandvik Coromant - TCGW1.21.20 Grade 7025 CBN Turning Insert - Uncoated, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 0.2mm Corner Radius
Item #: 49687924
Brand: Sandvik Coromant
Model #: 6903599
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TCGW |
| Insert Size | 1.21.20 |
| Material | CBN |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0780 |
| Thickness (mm) | 1.98 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 7025 |
| Coating | Uncoated |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| ISO Number | TCGW06T102T01020E 7025 |
| Rake | Neutral |
| Relief Angle | 7 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered |
| Shape | Triangle |
