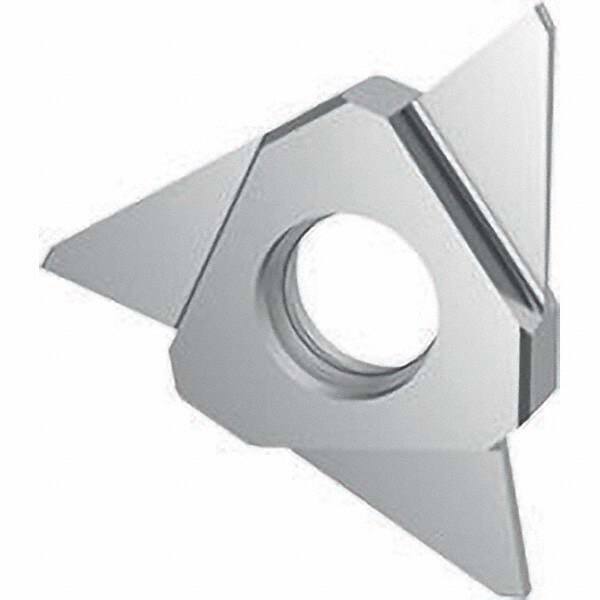

Guhring - Cut-Off Inserts Material: Carbide Insert Style: GZ 305
Item #: 14904403
Brand: Guhring
Model #: 9256430120010
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Cut-Off Inserts; Material: Carbide ; Insert Style: GZ 305 ; Insert Size: 4 ; Lead Angle Direction: Neutral ; Lead Angle: 0 ; Cutting Width (mm): 1.00
| Material | Carbide |
| Insert Style | GZ 305 |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 1.00 |
| Manufacturer's Grade | AA.04 |
| Coating | Uncoated |
| Series | 25643 |
| Relief Angle | 0 |
| Chipbreaker | N |
| Maximum Depth of Cut (mm) | 5.00 |
| Full Radius | No |
| Coating Process | Uncoated |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Width Tolerance | 0.02 (mm) |
| Coolant Through | No |
