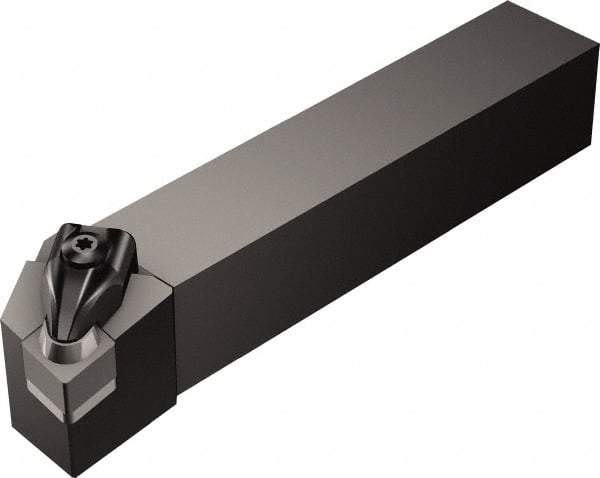

Sandvik Coromant - CCLNR/L, Right Hand Cut, -5° Lead Angle, 38.1mm Shank Height x 38.1mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL, CNGN 12 07 08, CNG 452 Insert Compatibility, Series T-Max
Item #: 49681125
Brand: Sandvik Coromant
Model #: 5723551
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CCLNR/L |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | -5 |
| Shank Width (mm) | 38.10 |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (mm) | 38.10 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CNGN 12 07 08; CNG 452 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 2.0000 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
