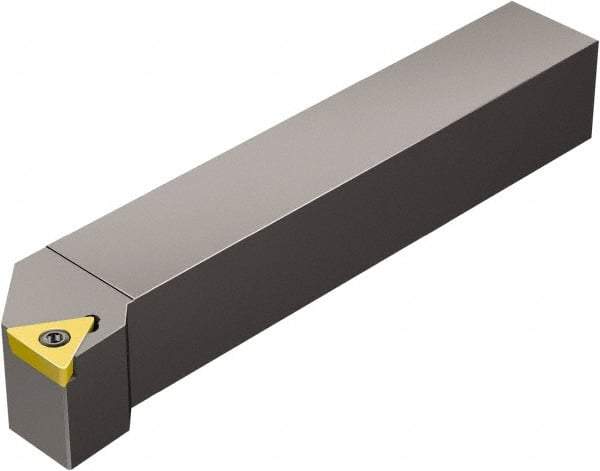

Sandvik Coromant - STFCR/L, Left Hand Cut, -1° Lead Angle, 20mm Shank Height x 20mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125mm OAL, TCMT 16 T3 08, TCMT 3(2.5)2 Insert Compatibility, Series CoroTurn 107
Item #: 49680275
Brand: Sandvik Coromant
Model #: 5751175
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | STFCR/L |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | -1 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | TCMT 16 T3 08; TCMT 3(2.5)2 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 21.30 |
| Head Length (Decimal Inch) | 0.8386 |
| Toolholder Material | Steel |
