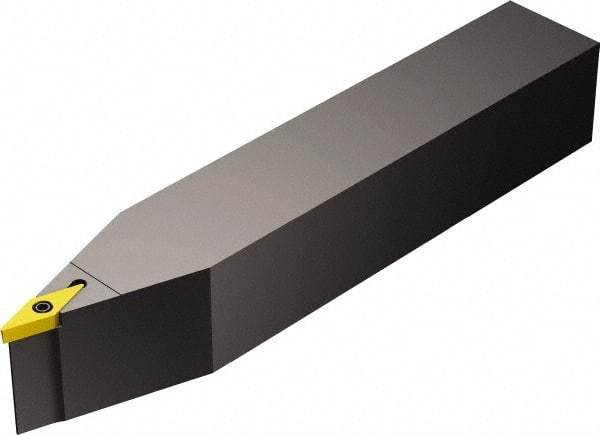

Sandvik Coromant - SVVBN, Neutral Cut, 17.5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, VBMT 11 03 04, VBMT 221 Insert Compatibility, Series CoroTurn 107
Item #: 49679889
Brand: Sandvik Coromant
Model #: 5751652
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SVVBN |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | 17.5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | VBMT 11 03 04; VBMT 221 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 0.5039 |
| Head Length (mm) | 21.10 |
| Head Length (Decimal Inch) | 0.8307 |
| Toolholder Material | Steel |
