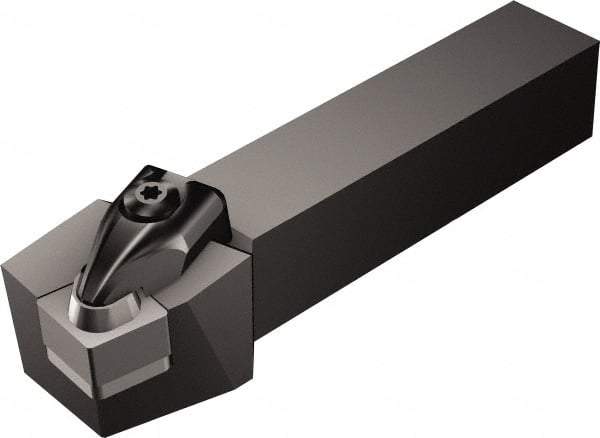

Sandvik Coromant - CCRNR/L, Left Hand Cut, 15° Lead Angle, 25.4mm Shank Height x 25.4mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL, CNGN 12 07 08, CNG 452 Insert Compatibility, Series T-Max
Item #: 49679558
Brand: Sandvik Coromant
Model #: 5723846
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CCRNR/L |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | 15 |
| Shank Width (mm) | 25.40 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CNGN 12 07 08; CNG 452 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 1.0480 |
| Head Length (mm) | 34.29 |
| Head Length (Decimal Inch) | 1.3500 |
| Toolholder Material | Steel |
