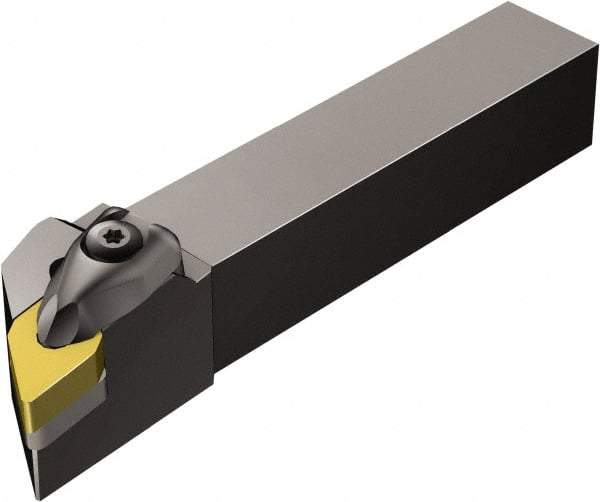

Sandvik Coromant - CDJNR/L, Right Hand Cut, -3° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, DNGN 15 07 08, DNG 452 Insert Compatibility, Series T-Max
Item #: 49679491
Brand: Sandvik Coromant
Model #: 5724360
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CDJNR/L |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | -3 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DNGN 15 07 08; DNG 452 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 39.40 |
| Head Length (Decimal Inch) | 1.5512 |
| Toolholder Material | Steel |
