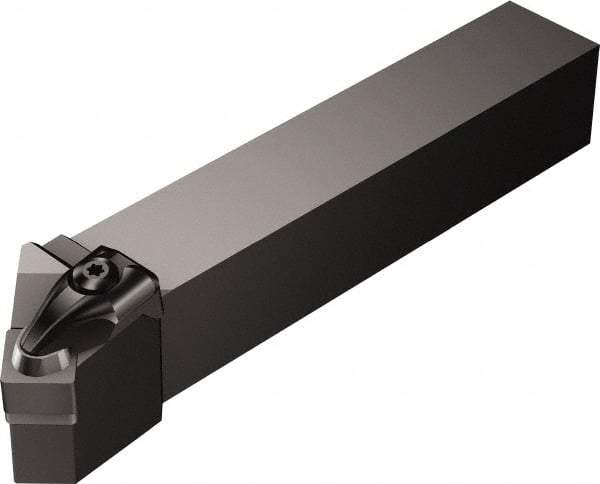

Sandvik Coromant - CSSNR/L, Right Hand Cut, 45° Lead Angle, 32mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 178.32mm OAL, SNGN 12 07 08, SNG 452 Insert Compatibility, Series T-Max
Item #: 49679335
Brand: Sandvik Coromant
Model #: 5726300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CSSNR/L |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | 45 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 178.32 |
| Overall Length (Decimal Inch) | 7.0205 |
| Insert Compatibility | SNGN 12 07 08; SNG 452 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Head Length (mm) | 27.40 |
| Head Length (Decimal Inch) | 1.0787 |
| Toolholder Material | Steel |
