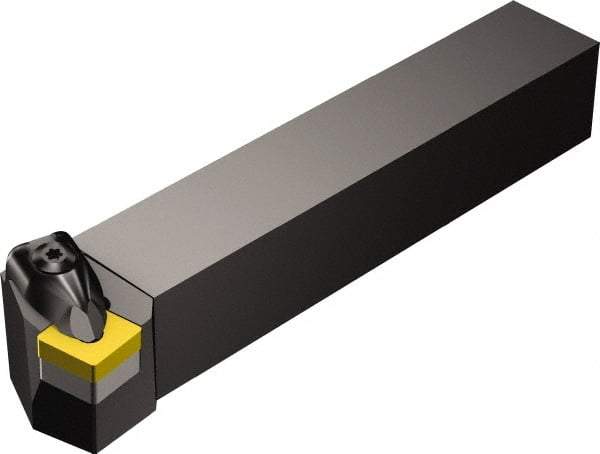

Sandvik Coromant - DCKNR/L, Left Hand Cut, 15° Lead Angle, 32mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 173.09mm OAL, CNMG 12 04 08, CNMG 432 Insert Compatibility, Series T-Max P
Item #: 49679103
Brand: Sandvik Coromant
Model #: 5730595
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCKNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 173.09 |
| Overall Length (Decimal Inch) | 6.8146 |
| Insert Compatibility | CNMG 12 04 08; CNMG 432 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 21.30 |
| Head Length (Decimal Inch) | 0.8386 |
| Toolholder Material | Steel |
