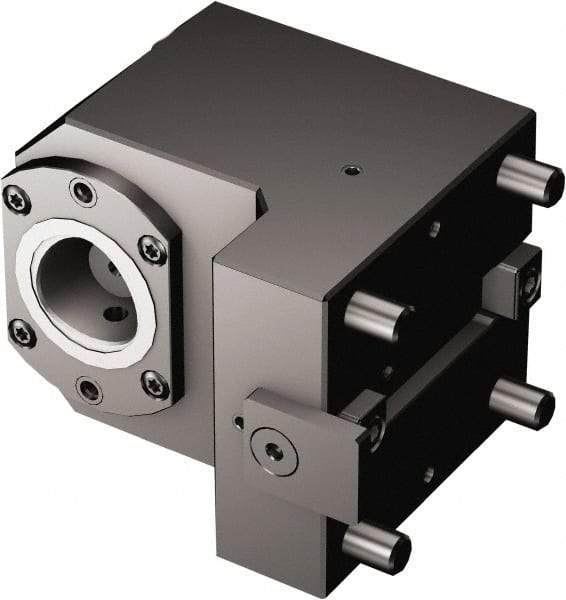

Sandvik Coromant - Left Hand Cut, C4 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 40mm Square Shank Diam, 5.354" OAL, Through Coolant
Item #: 49660327
Brand: Sandvik Coromant
Model #: 6866754
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Connection Size | C4 |
| Cutting Direction | Left Hand |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Through Coolant | Yes |
| Head Height (mm) | 84.00 |
| Head Height (Decimal Inch) | 3.3071 |
| Overall Length (mm) | 136.00 |
| Overall Length (Decimal Inch) | 5.35433 |
| Head Length (Decimal Inch) | 3.9370 |
| Head Length (mm) | 100.00 |
| Shank Length (mm) | 79.00 |
| Shank Length (Decimal Inch) | 3.1102 |
