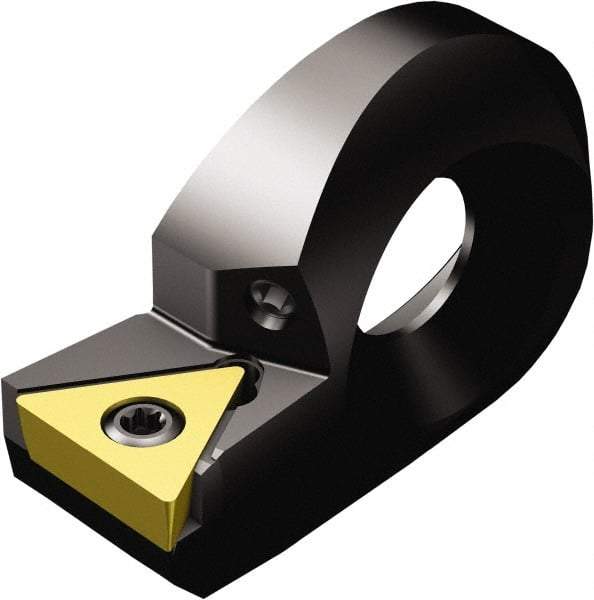

Sandvik Coromant - Series CoroBore 826, Right Hand Cut, 38mm Min Bore Diam, Boring Cartridge - 17mm Back of Bar to Cutting Edge, TCMT Insert, 25mm OAL
Item #: 49659998
Brand: Sandvik Coromant
Model #: 6873082
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroBore 826 |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 1.4961 |
| Minimum Bore Diameter (mm) | 38.00 |
| Insert Style | TCMT |
| Cartridge Size | B |
| Overall Length (mm) | 25.00 |
| Overall Length (Decimal Inch) | 0.9843 |
| Back of Bar to Cutting Edge (mm) | 17.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6693 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.669291 |
| Back of Bar to Cutting Edge (mm) | 17 |
| Complete Insert Compatibility | TCMT 09 02 04 |
