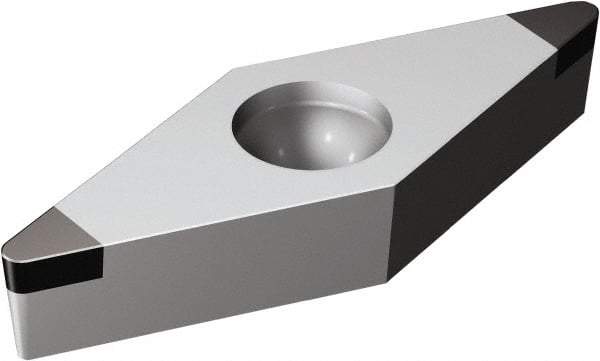

Sandvik Coromant - VBGW221 Grade 7025 CBN Turning Insert - Uncoated, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 49659790
Brand: Sandvik Coromant
Model #: 6879550
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | VBGW |
| Insert Size | 221 |
| Material | CBN |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.17 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 7025 |
| Coating | Uncoated |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | VBGW110304S01020F 7025 |
| Rake | Neutral |
| Relief Angle | 5 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 2.50 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered andRounded |
| Shape | Diamond |
