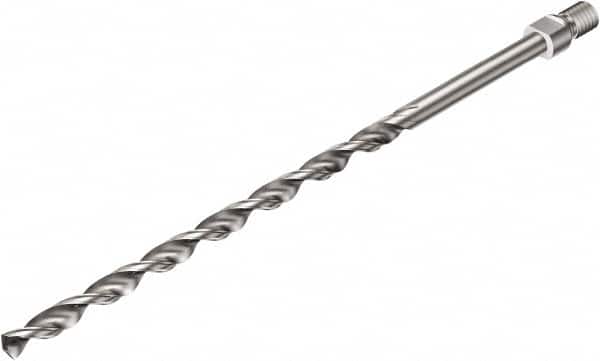

Sandvik Coromant - 6.37mm 135° Solid Carbide Jobber Drill - Uncoated, Right Hand Cut, 152.4mm OAL
Item #: 49659659
Brand: Sandvik Coromant
Model #: 6882102
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.37 |
| Drill Bit Size (Decimal Inch) | 0.2509 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Uncoated |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Flute Length (mm) | 101.60 |
| Flute Length (Decimal Inch) | 4.0000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Flute Length x Diameter Ratio | 1xD |
| Maximum Drilling Depth (Decimal Inch) | 1.0035 |
| Maximum Drilling Depth (mm) | 25.49 |
| Drill Point Length (mm) | 1.76 |
| Drill Point Length (Decimal Inch) | 0.0693 |
| Number of Flutes | 2 |
| Series/List | CoroDrill 863 |
