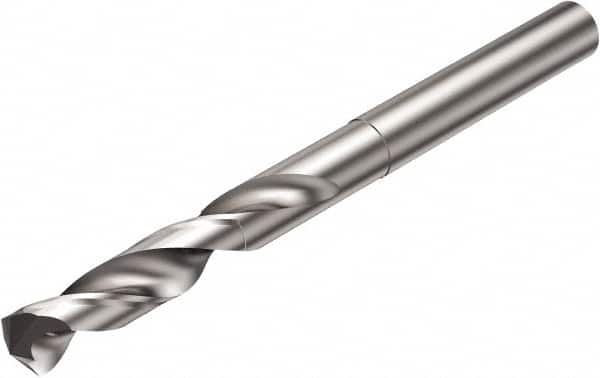

Sandvik Coromant - 7.96mm 135° Solid Carbide Jobber Drill - Uncoated, Right Hand Cut, Cylindrical Shank, 81mm OAL
Item #: 49659618
Brand: Sandvik Coromant
Model #: 6882084
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 7.96 |
| Drill Bit Size (Decimal Inch) | 0.3136 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Uncoated |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6929 |
| Overall Length (mm) | 81.00 |
| Overall Length (Decimal Inch) | 3.1890 |
| Flute Length x Diameter Ratio | 4xD |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Maximum Drilling Depth (Decimal Inch) | 1.2598 |
| Maximum Drilling Depth (mm) | 32.00 |
| Drill Point Length (mm) | 3.29 |
| Drill Point Length (Decimal Inch) | 0.1295 |
| Number of Flutes | 2 |
| Series/List | CoroDrill 863 |
