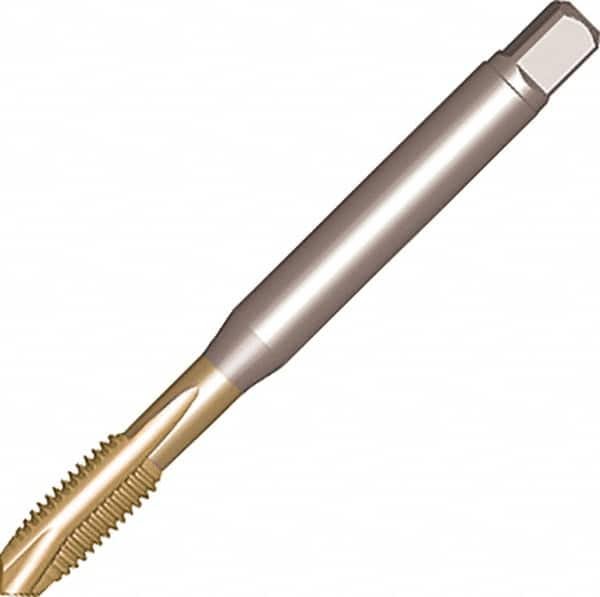

Sandvik Coromant - #10-32 UNF, 3 Flute, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 71.92mm OAL, 14.7mm Thread Length, 4.93mm Shank Diam, 3BX Class of Fit, Series CoroTap 200
Item #: 49656929
Brand: Sandvik Coromant
Model #: 6967131
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-32 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 3BX |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.8315 |
| Overall Length (mm) | 71.92 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.5787 |
| Thread Length (mm) | 14.70 |
| Series/List | CoroTap 200 |
| Tapping Depth (mm) | 28.00 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Shank Diameter (mm) | 4.93 |
| Material Application | Steel; Stainless Steel; Cast Iron |
