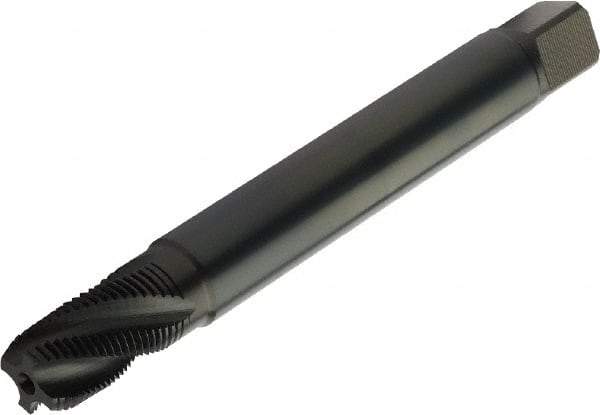

Sandvik Coromant - 1-11.5 NPT 5 Flute Spiral Flute Tap - High Speed Steel, Steam Tempered Finish, 150mm OAL, Right Hand Thread, Series CoroTap 300
Item #: 49655616
Brand: Sandvik Coromant
Model #: 6967074
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1-11.5 |
| Number of Flutes | 5 |
| Material | High Speed Steel |
| Finish/Coating | Steam Tempered |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Helix Angle | 15 |
| Thread Standard | NPT |
| Thread Length (Decimal Inch) | 1.2205 |
| Thread Length (mm) | 31.00 |
| Flute Type | Spiral |
| Series/List | CoroTap 300 |
| Tapping Depth (Decimal Inch) | 2.2835 |
| Tapping Depth (mm) | 58.00 |
| Shank Diameter (Decimal Inch) | 1.1250 |
| Shank Diameter (mm) | 28.57 |
| Material Application | Non-Ferrous Metals; Steel; Stainless Steel; Cast Iron |
