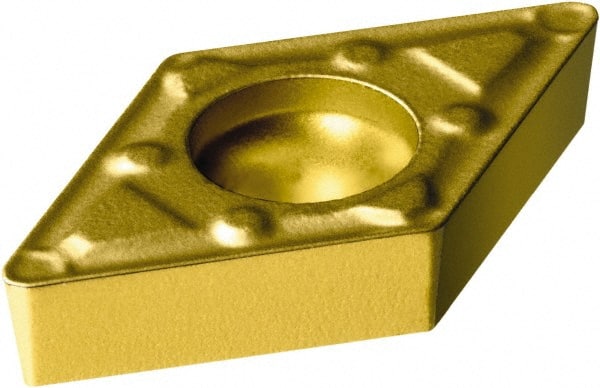

Sandvik Coromant - DCMX21.51 WF Grade 1525 Carbide Turning Insert
Item #: 54747696
Brand: Sandvik Coromant
Model #: 5730915
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMX |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (mm) | 7.35 |
| Length (Decimal Inch) | 0.2894 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 1525 |
| Coating | TiCN/TiN |
| Chip Breaker | WF |
| Insert Length (Decimal Inch) | 0.2894 |
| OverallLength (mm) | 7.75 |
| Overall Length (Decimal Inch) | 0.3052 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.0937 |
| ISO Number | DCMX 07 02 04-WF 1525 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DCMX 07 02 04-WF 1525 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 7.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2894 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 7.35 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
