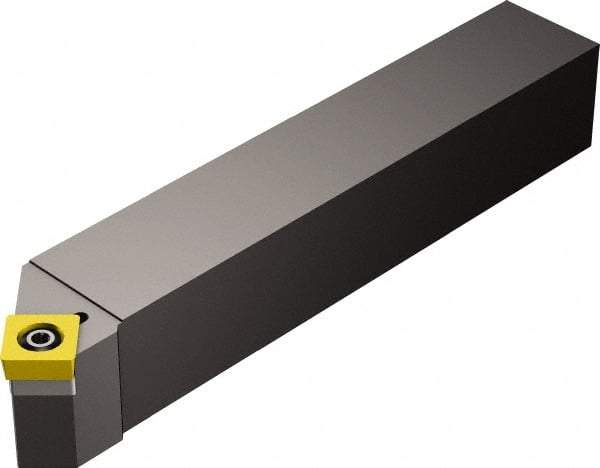

Sandvik Coromant - SSDCR/L, Right Hand Cut, 45° Lead Angle, 20mm Shank Height x 20mm Shank Width, Neutral Rake Indexable Turning Toolholder - 124.98mm OAL, SCMT 09 T3 08, SCMT 3(2.5)2 Insert Compatibility, Series CoroTurn 107
Item #: 49652977
Brand: Sandvik Coromant
Model #: 5751189
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SSDCR/L |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | 45 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 124.98 |
| Overall Length (Decimal Inch) | 4.9205 |
| Insert Compatibility | SCMT 09 T3 08; SCMT 3(2.5)2 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 118.90 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.6811 |
| Head Length (mm) | 12.40 |
| Head Length (Decimal Inch) | 0.4882 |
| Toolholder Material | Steel |
