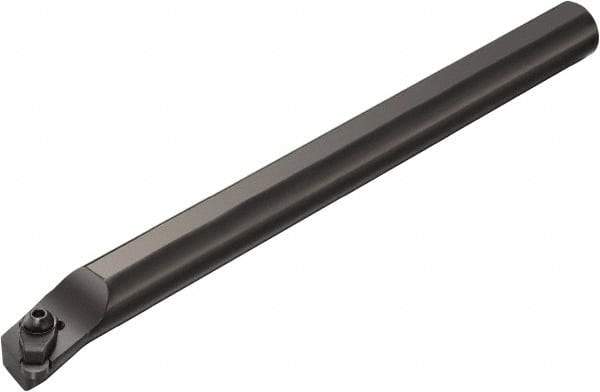

Sandvik Coromant - 32mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, S..CRSPR/L Indexable Boring Bar - RPG 32, RPGN 09 03 00 Insert
Item #: 49652753
Brand: Sandvik Coromant
Model #: 5752502
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S..CRSPR/L |
| Series | T-Max |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | RPG 32; RPGN 09 03 00 |
| Through Coolant | No |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | 0 |
| Complete Insert Compatibility | RPG 32; RPGN 09 03 00 |
| Toolholder Material | Steel |
