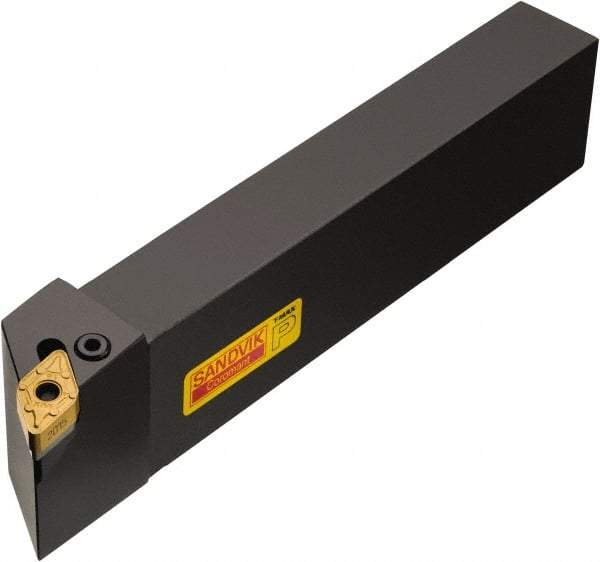

Sandvik Coromant - R/L171.35, Right Hand Cut, -3° Lead Angle, 50mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 225mm OAL, DNMG 15 06 08, DNMG 442 Insert Compatibility, Series T-Max P
Item #: 49652738
Brand: Sandvik Coromant
Model #: 5742479
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | R/L171.35 |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -3 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 225.00 |
| Overall Length (Decimal Inch) | 8.8583 |
| Insert Compatibility | DNMG 15 06 08; DNMG 442 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 225.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 8.8583 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4961 |
| Toolholder Material | Steel |
