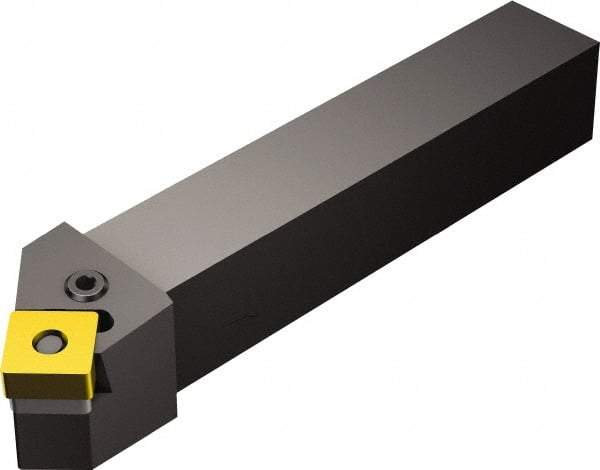

Sandvik Coromant - PSSNR/L, Left Hand Cut, 45° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 182.48mm OAL, SNMG 19 06 12, SNMG 643 Insert Compatibility, Series T-Max P
Item #: 49652514
Brand: Sandvik Coromant
Model #: 5739222
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PSSNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 182.48 |
| Overall Length (Decimal Inch) | 7.1842 |
| Insert Compatibility | SNMG 19 06 12; SNMG 643 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Toolholder Material | Steel |
