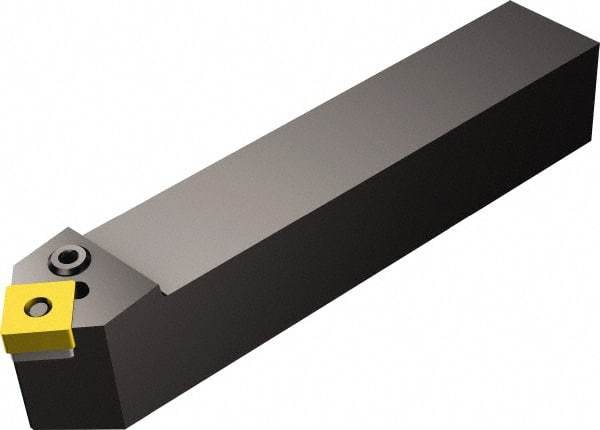

Sandvik Coromant - PSDNN, Neutral Cut, 45° Lead Angle, 10mm Shank Height x 10mm Shank Width, Negative Rake Indexable Turning Toolholder - 70mm OAL, SNMG 09 03 08, SNMG 322 Insert Compatibility, Series T-Max P
Item #: 49652449
Brand: Sandvik Coromant
Model #: 5740031
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PSDNN |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (mm) | 10.00 |
| Shank Width (Decimal Inch) | 0.3937 |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Insert Compatibility | SNMG 09 03 08; SNMG 322 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (Decimal Inch) | 0.2087 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Toolholder Material | Steel |
