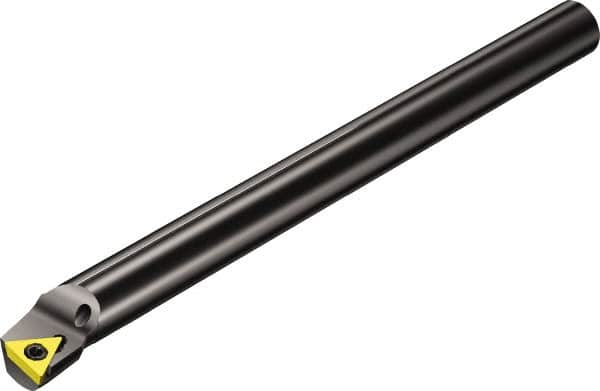

Sandvik Coromant - 16mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, A..STFCR/L-R Indexable Boring Bar - TCMT 221, TCMT 11 03 04 Insert, Screw or Clamp Holding Method
Item #: 49651326
Brand: Sandvik Coromant
Model #: 5721426
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..STFCR/L-R |
| Series | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TCMT 221; TCMT 11 03 04 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.4724 |
| Lead Angle | -1 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCMT 221; TCMT 11 03 04 |
| Toolholder Material | Steel |
